DSBC
FESTO Standards-based cylinder DSBC
Standards-based profile cylinder to ISO 15552 with a wide variety of mounting options
- ISO 15552 (ISO 6431, VDMA 24562)
- Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
- Standard profile with two sensor slots
- Wide range of variants for customised applications

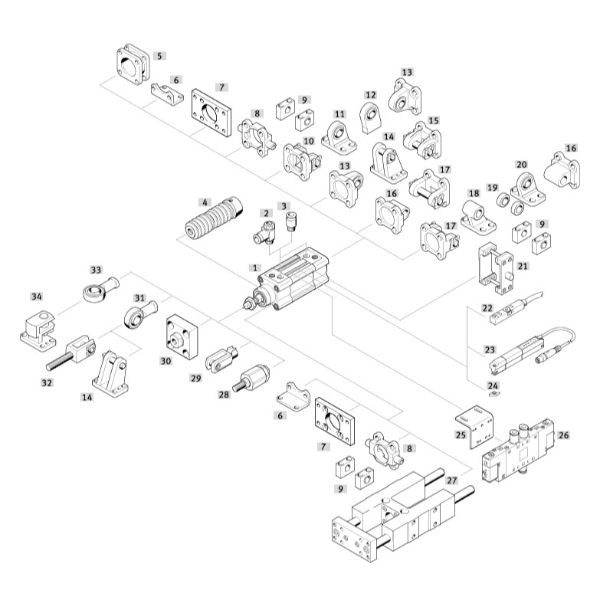

- Comprehensive range of mounting accessories for just about every type of installation for position sensing
- Variants recommended for production systems for manufacturing lithium-ion batteries
Code
Model
2123069 DSBC-32-20-PPVA-N3 1376422 DSBC-32-25-PPVA-N3 2123070 DSBC-32-30-PPVA-N3 1376423 DSBC-32-40-PPVA-N3 1376424 DSBC-32-50-PPVA-N3 2123071 DSBC-32-60-PPVA-N3 2123072 DSBC-32-70-PPVA-N3 1376425 DSBC-32-80-PPVA-N3 1376426 DSBC-32-100-PPVA-N3 1376427 DSBC-32-125-PPVA-N3 2123073 DSBC-32-150-PPVA-N3 1376428 DSBC-32-160-PPVA-N3 1376429 DSBC-32-200-PPVA-N3 1376430 DSBC-32-250-PPVA-N3 2123074 DSBC-32-300-PPVA-N3 376431 DSBC-32-320-PPVA-N3 1376432 DSBC-32-400-PPVA-N3 1376433 DSBC-32-500-PPVA-N3 2123085 DSBC-32-20-PPSA-N3 1376467 DSBC-32-35-PPSA-N3 2123086 DSBC-32-30-PPSA-N3 1376468 DSBC-32-40-PPSA-N3 1376469 DSBC-32-50-PPSA-N3 2123087 DSBC-32-60-PPSA-N3 2123088 DSBC-32-70-PPSA-N3 1376470 DSBC-32-80-PPSA-N3 1376471 DSBC-32-100-PPSA-N3 1376472 DSBC-32-125-PPSA-N3 2123089 DSBC-32-150-PPSA-N3 1376473 DSBC-32-60-PPSA-N3 1376474 DSBC-32-200-PPSA-N3 1376475 DSBC-32-350-PPSA-N3 2123090 DSBC-32-300-PPSA-N3 1376476 DSBC-32-320-PPSA-N3 1376477 DSBC-32-400-PPSA-N3 1376478 DSBC-32-500-PPSA-N3 2123166 DSBC-40-20-PPVA-N3 1376656 DSBC-40-25-PPVA-N3 2123167 DSBC-40-30-PPVA-N3 1376657 DSBC-40-40-PPVA-N3 376658 DSBC-40-50-PPVA-N3 2123224 DSBC-40-60-PPVA-N3 2123225 DSBC-40-70-PPVA-N3 376659 DSBC-40-80-PPVA-N3 1376660 DSBC-40-100-PPVA-N3 376661 DSBC-40-125-PPVA-N3 2123326 DSBC-40-150-PPVA-N3 1376662 DSBC-40-160-PPVA-N3 1376663 DSBC-40-200-PPVA-N3 1376664 DSBC-40-250-PPVA-N3 2123327 DSBC-40-300-PPVA-N3 1376665 DSBC-40-320-PPVA-N3 1376666 DSBC-40-400-PPVA-N3 376667 DSBC-40-500-PPVA-N3 2123780 DSBC-40-20-PPSA-N3 1376903 DSBC-40-25-PPSA-N3 2123781 DSBC-40-30-PPSA-N3 1376904 DSBC-40-40-PPSA-N3 1376905 DSBC-40-50-PPSA-N3 2123782 DSBC-40-60-PPSA-N3 2123783 DSBC-40-70-PPSA-N3 1376906 DSBC-40-80-PPSA-N3 1376907 DSBC-40-100-PPSA-N3 1376908 DSBC-40-125-PPSA-N3 2123784 DSBC-40-150-PPSA-N3 1376909 DSBC-40-160-PPSA-N3 1376910 DSBC-40-200-PPSA-N3 1376911 DSBC-40-250-PPSA-N3 2123785 DSBC-40-300-PPSA-N3
Code
Model
1376912 DSBC-40-320-PPSA-N3 1376913 DSBC-40-400-PPSA-N3 1376914 DSBC-40-100-PPSA-N3 2098969 DSBC-50-20-PPVA-N3 1366948 DSBC-50-25-PPVA-N3 2098970 DSBC-50-30-PPVA-N3 1366949 DSBC-50-40-PPVA-N3 1366950 DSBC-50-50-PPVA-N3 2098972 DSBC-50-60-PPVA-N3 2098973 DSBC-50-70-PPVA-N3 1366951 DSBC-50-80-PPVA-N3 1366952 DSBC-50-100-PPVA-N3 1366953 DSBC-50-125-PPVA-N3 2098974 DSBC-50-150-PPVA-N3 1366954 DSBC-50-160-PPVA-N3 1366955 DSBC-50-200-PPVA-N3 1366956 DSBC-50-250-PPVA-N3 2098975 DSBC-50-300-PPVA-N3 1366957 DSBC-50-320-PPVA-N3 1366958 DSBC-50-400-PPVA-N3 1366959 DSBC-50-500-PPVA-N3 2102628 DSBC-50-20-PPSA-N3 1376301 DSBC-50-25-PPSA-N3 2102629 DSBC-50-30-PPSA-N3 1376304 DSBC-50-40-PPSA-N3 1376305 DSBC-50-50-PPSA-N3 2102630 DSBC-50-60-PPSA-N3 2102631 DSBC-50-70-PPSA-N3 1376306 DSBC-50-80-PPSA-N3 1376307 DSBC-50-100-PPSA-N3 1376308 DSBC-50-125-PPSA-N3 2102632 DSBC-50-150-PPSA-N3 1376309 DSBC-50-160-PPSA-N3 1376310 DSBC-50-200-PPSA-N3 1376311 DSBC-50-250-PPSA-N3 2102633 DSBC-50-300-PPSA-N3 1376312 DSBC-50-320-PPSA-N3 1376313 DSBC-50-400-PPSA-N3 1376314 DSBC-50-500-PPSA-N3 2125490 DSBC-63-20-PPVA-N3 1383578 DSBC-63-25-PPVA-N3 2125491 DSBC-63-30-PPVA-N3 1383579 DSBC-63-40-PPVA-N3 1383580 DSBC-63-50-PPVA-N3 2125492 DSBC-63-60-PPVA-N3 2125493 DSBC-63-70-PPVA-N3 1383581 DSBC-63-80-PPVA-N3 1383582 DSBC-63-100-PPVA-N3 1383583 DSBC-63-125-PPVA-N3 2125494 DSBC-63-150-PPVA-N3 1383584 DSBC-63-160-PPVA-N3 1383585 DSBC-63-200-PPVA-N3 1383586 DSBC-63-250-PPVA-N3 2125495 DSBC-63-300-PPVA-N3 1383587 DSBC-63-320-PPVA-N3 1383588 DSBC-63-400-PPVA-N3 1383589 DSBC-63-500-PPVA-N3 2126684 DSBC-63-20-PPSA-N3 1383632 DSBC-63-25-PPSA-N3 2126685 DSBC-63-30-PPSA-N3 1383633 DSBC-63-40-PPSA-N3 1383634 DSBC-63-50-PPSA-N3 2126686 DSBC-63-60-PPSA-N3 2126687 DSBC-63-70-PPSA-N3 1383635 DSBC-63-80-PPSA-N3 1383636 DSBC-63-100-PPSA-N3 1383637 DSBC-63-125-PPSA-N3 2126688 DSBC-63-150-PPSA-N3 1383638 DSBC-63-160-PPSA-N3
Code
Model
1383639 DSBC-63-200-PPSA-N3 1383640 DSBC-63-250-PPSA-N3 2126689 DSBC-63-300-PPSA-N3 1383641 DSBC-63-320-PPSA-N3 1383642 DSBC-63-400-PPSA-N3 1383643 DSBC-63-500-PPSA-N3 2126594 DSBC-80-20-PPVA-N3 1383333 DSBC-80-25-PPVA-N3 2126595 DSBC-80-30-PPVA-N3 383334 DSBC-80-40-PPVA-N3 1383335 DSBC-80-50-PPVA-N3 2126597 DSBC-80-60-PPVA-N3 2126598 DSBC-80-70-PPVA-N3 1383336 DSBC-80-80-PPVA-N3 1383337 DSBC-80-100-PPVA-N3 1383338 DSBC-80-125-PPVA-N3 2126599 DSBC-80-150-PPVA-N3 1383339 DSBC-80-160-PPVA-N3 1383340 DSBC-80-200-PPVA-N3 1383341 DSBC-80-250-PPVA-N3 2126600 DSBC-80-300-PPVA-N3 1383342 DSBC-80-320-PPVA-N3 383343 DSBC-80-400-PPVA-N3 1383344 DSBC-80-500-PPVA-N3 2126636 DSBC-80-20-PPSA-N3 1383366 DSBC-80-35-PPSA-N3 2126637 DSBC-80-30-PPSA-N3 1383367 DSBC-80-40-PPSA-N3 1383368 DSBC-80-50-PPSA-N3 2126638 DSBC-80-60-PPSA-N3 2126639 DSBC-80-70-PPSA-N3 1383369 DSBC-80-80-PPSA-N3 1383370 DSBC-80-100-PPSA-N3 1383371 DSBC-80-125-PPSA-N3 2126640 DSBC-80-150-PPSA-N3 1383372 DSBC-80-60-PPSA-N3 1383373 DSBC-80-200-PPSA-N3 1383374 DSBC-80-350-PPSA-N3 2126641 DSBC-80-300-PPSA-N3 1383375 DSBC-80-320-PPSA-N3 1383376 DSBC-80-400-PPSA-N3 1383377 DSBC-80-500-PPSA-N3 1384809 DSBC-100-125-PPVA-N3 1384810 DSBC-100-160-PPVA-N3 1384811 DSBC-100-200-PPVA-N3 1384812 DSBC-100-250-PPVA-N3 1384813 DSBC-100-320-PPVA-N3 1384815 DSBC-100-500-PPVA-N3 1384890 DSBC-100-25-PPSA-N3 138489J DSBC-100-40-PPSA-N3 1384892 DSBC-100-50-PPSA-N3 1384893 DSBC-100-80-PPSA-N3 1384894 DSBC-100-100-PP5A-N3 1384895 DSBC-100-125-PPSA-N3 1384896 DSBC-100-160-PPSA-N3 1384897 DSBC-100-200-PPSA-N3 1384898 DSBC-100-250-PPSA-N3 1384900 DSBC-100-400-PPSA-N3 138490J DSBC-100-500-PPSA-N3 1804956 DSBC-125-25-PPVA-N3 1804957 DSBC-125-40-PPVA-N3 1804960 DSBC-125-100-PPVA-N3 1804962 DSBC-125-160-PPVA-N3 1804963 DSBC-125-200-PPVA-N3 1804964 DSBC-125-250-PPVA-N3 1804662 DSBC-125-40-PPSA-N3 1804663 DSBC-125-50-PPSA-N3 1804664 DSBC-125-80-PPSA-N3 1804665 DSBC-125-100-PPSA-N3 1804666 DSBC-125-125-PPSA-N3 1804667 DSBC-125-160-PPSA-N3 1804668 DSBC-125-200-PPSA-N3 1804669 DSBC-125-250-PPSA-N3 1804672 DSBC-125-400-PPSA-N3
