EPCC - BS

FESTO Electric cylinder EPCC
With its compact dimensions, precise and quiet ball screw drive and short positioning times, the EPCC is ideal in assembly systems, test and inspection systems, with desktop applications, in small parts handling or the electronics industry – wherever the installation space demands optimal utilisation.

Low-cost: optimum price/performance ratio

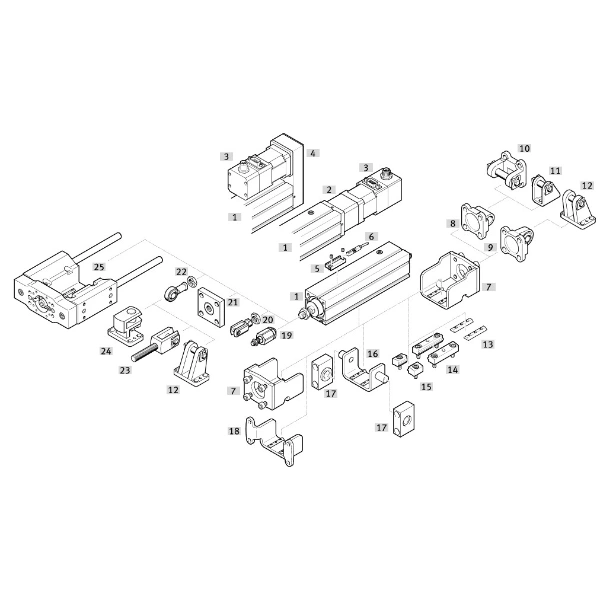

Flexible: wide range of mounting options for the motor
Dynamic: lower internal friction
Non-rotating piston rod with plain-bearing guide, stroke up to 500 mm
Weight-optimised design - ideal for handling systems
Unique: "One-size-down" assembly system for the best use of space in combination with toothed belt/spindle axis ELGC
The electric cylinder EPCC is a mechanical linear drive with piston rods. The drive element consists of an electrically driven spindle that converts the rotary motion of the motor into a linear motion of the piston rods. Suitable for simple applications in factory automation, which were previously solved mainly pneumatically
Series

Code Model
5428805EPCC-BS-25-25-2P-A
54288J3EPCC-BS-25-25-6P-A
5428806EPCC-BS-25-50-2P-A
54288J4EPCC-BS-25-50-6P-A
5428807EPCC-BS-25-75-2P-A
54288J5EPCC-BS-25-75-6P-A
5428808EPCC-BS-25-100-2P-A
54288J6EPCC-BS-25-100-6P-A
5428809EPCC-BS-25-125-2P-A
54288J7EPCC-BS-25-125-6P-A
54288J0EPCC-BS-25-150-2P-A
54288J8EPCC-BS-25-t50-6P-A
54288J9EPCC-BS-25-175-6P-A
54288J2EPCC-BS-25-200-2P-A
5428820EPCC-BS-25-200-6P-A
Code Model
5428833EPCC-BS-32-25-3P-A
5428841EPCC-BS-32-25-8P-A
5428834EPCC-BS-32-50-3P-A
5428842EPCt-BS-32-50-8P-A
5428835EPCC-BS-32-75-3P-A
54288t3EPCC-BS-32-75-8P-A
5428836EPCC-BS-32-100-3P-A
s4zss4sEPCC-BS-32-100-8P-A
5428837EPCC-BS-32-125-3P-A
5428845EPCC-BS-32-125-8P-A
5428838EPCC-BS-32-150-3P-A
5428846EPCC-BS-32-t50-8P-A
5428839EPCC-BS-32-175-3P-A
5428847EPCt-BS-32-175-8P-A
s4z884oEPCC-BS-32-200-3P-A
Code Model
5428848EPCC-BS-32-200-8P-A
5428858EPCC-BS-45-25-3P-A
5428868EPCC-BS-45-25-10P-A
5428859EPCC-BS-45-50-3P-A
5428869EPCt-BS-45-50-10P-A
5428860EPCC-BS-45-75-3P-A
5428870EPCt-BS-45-75-10P-A
5428861EPCC-BS-45-100-3P-A
5428871EPCt-BS-45-200-10P-A
5428862EPCt-BS-45-200-10P-A
5428872EPCt-BS-45-200-10P-A
5428873EPCt-BS-45-200-10P-A
5428864EPCt-BS-45-200-10P-A
5428874EPCt-BS-45-200-10P-A
5428865EPCt-BS-45-200-10P-A
5428875EPCt-BS-45-200-10P-A
